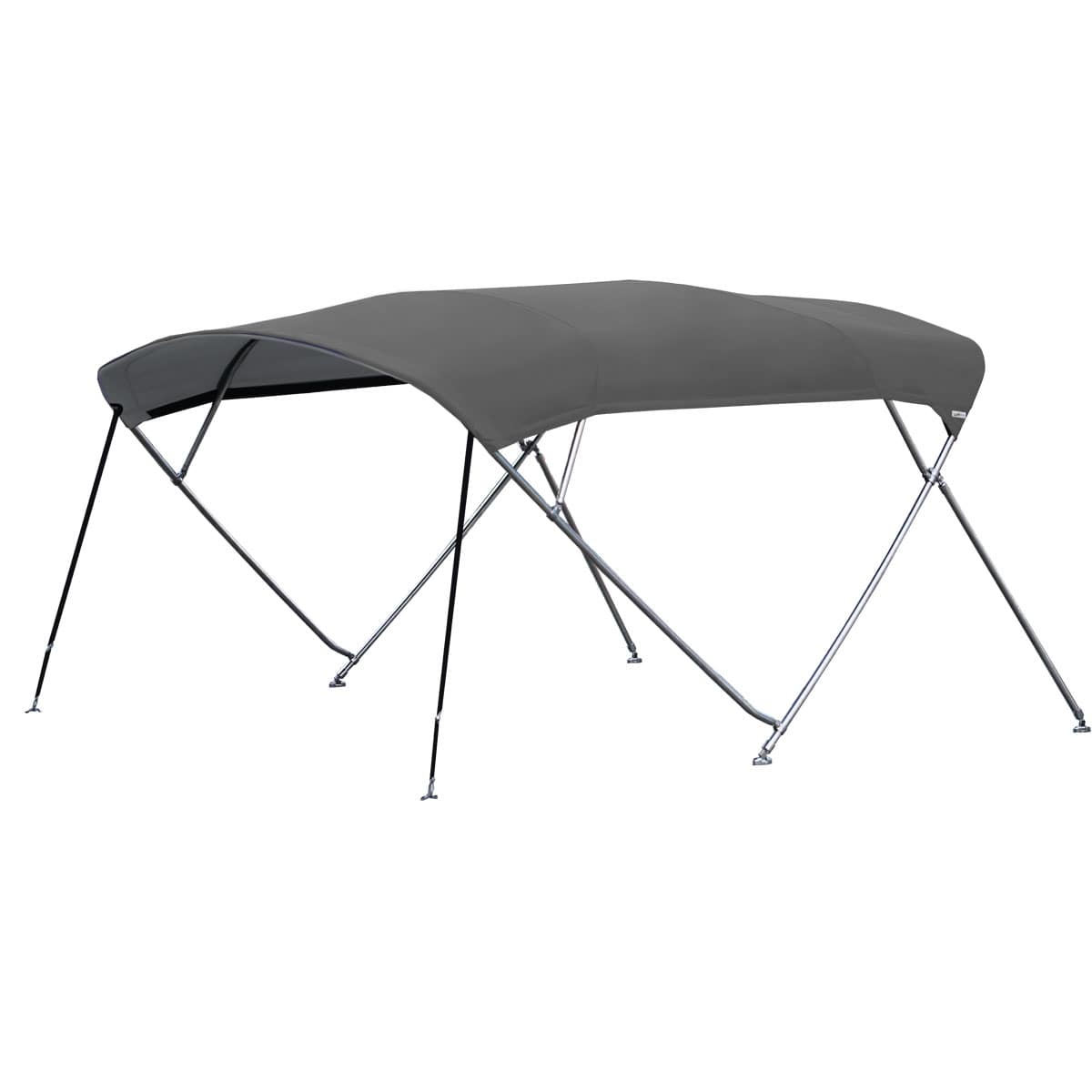

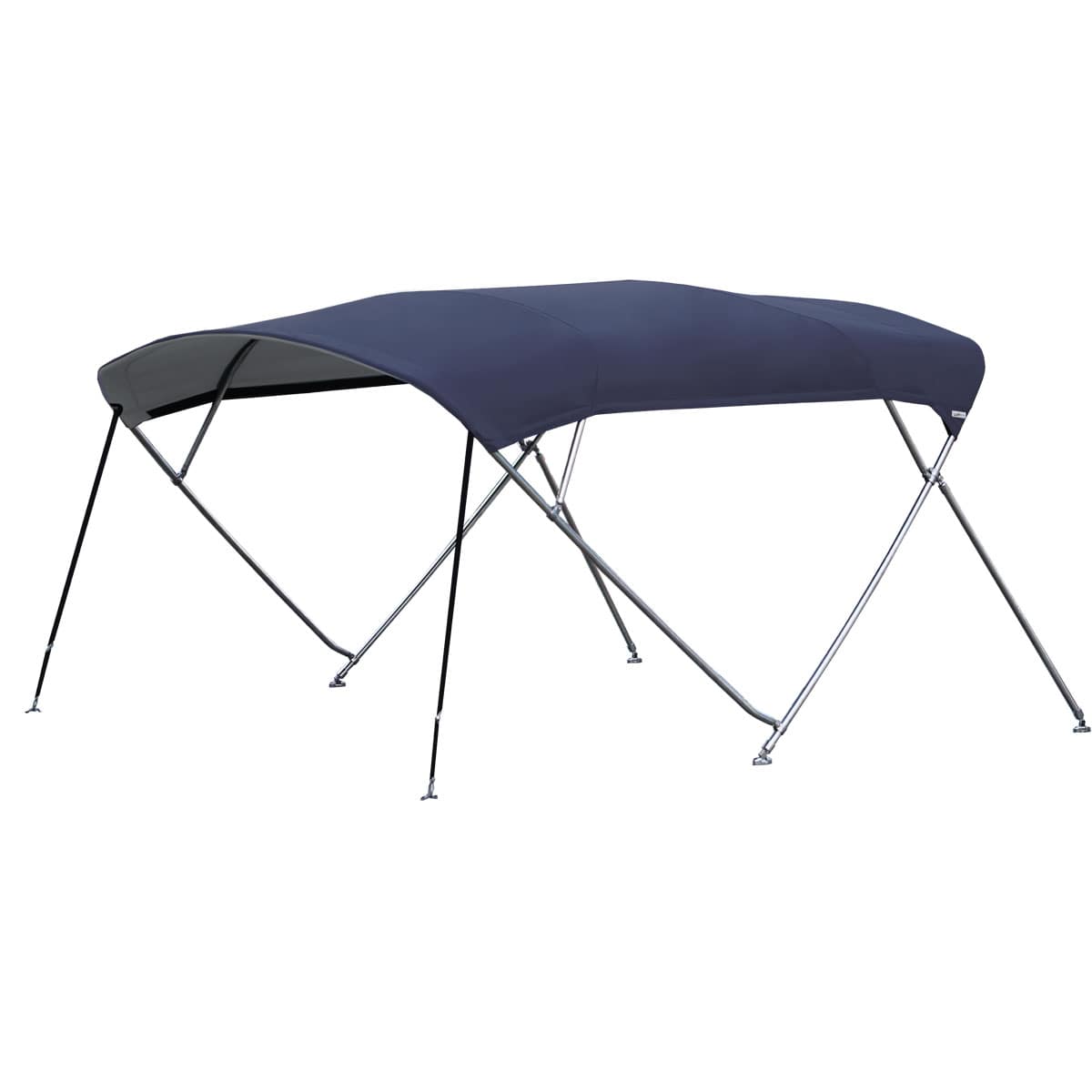

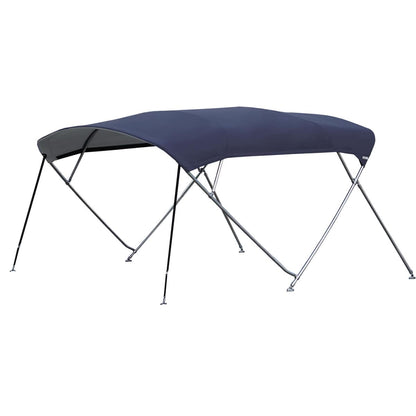

Stainless Steel Cruiser Bimini Top

Oceansouth Cruiser Bimini Professionally styled and manufactured to the highest custom made standards, suits larger cruiser boats, giving excellent sun and weather protection over the cockpit. Ø25mm (1”) double-wall stainless steel 316 framework and components.

Features Unique Integrated Storage Boot

Features

Suitable for Cruiser Boats
Integrated storage boot & support poles included
100% Dope dyed polyester ATLAS canvas *GOLDEN RANGE*
25mm (1″) stainless steel 4 bow framework and components
Topstitched double seams, sewn with UV bonded thread for maximum strength.

How to Measure

CANOPY WIDTH	MOUNTING WIDTH	ORDER CODE
1.75m	1.8m – 2.1m	MA 066-1
1.95m	2.1m – 2.4m	MA 066-2
2.25m	2.4m – 2.7m	MA 066-3
2.55m	2.7m – 3.0m	MA 066-4
2.85m	3.0m – 3.3m	MA 066-5

Canvas Features


Weight	350 g/m2 (10.4 oz/yd2)
Material	100% High Tech Polyester
Water Column	≥ 150 mbar (1500 mm)
Light & Weather Fastness	Note 7-8
Tensile Strength	≈ 2600 N¹ \| 1600 N²
Elongation	≈ 40 %¹ \| 30 %²
Colour Fastness to rubbing	Note 4-5³ \| Note 44
Chlorine Resistant	Note 4-5
Water Repellency	Note 100
Oil Repellency	Note 4
Coating	Polyurethan [PU]
UV Protection Factor	UPF 50+ (measured value > UPF 80)

CANOPY WIDTH	MOUNTING WIDTH	ORDER CODE
1.75m	1.8m – 2.1m	MA 066-1
1.95m	2.1m – 2.4m	MA 066-2
2.25m	2.4m – 2.7m	MA 066-3
2.55m	2.7m – 3.0m	MA 066-4
2.85m	3.0m – 3.3m	MA 066-5
