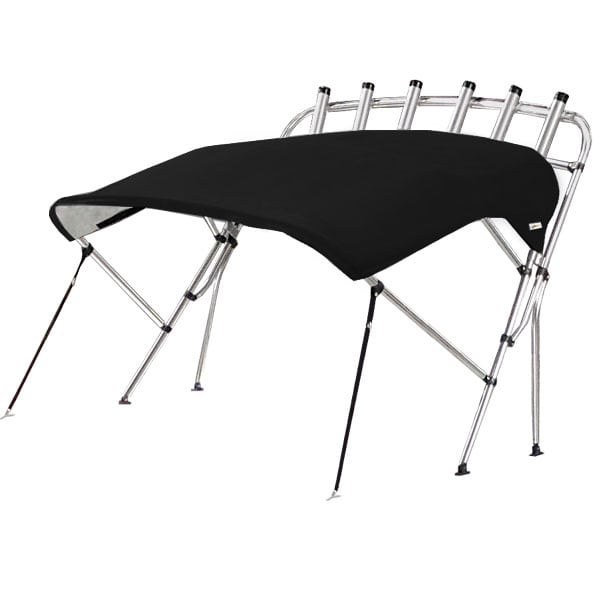

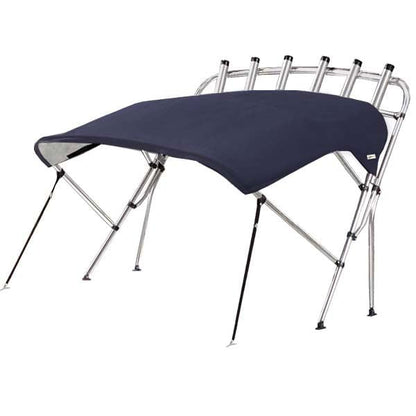

Bright dipped 25mm aluminium tube extra strength 3mm wall thickness. Two tone fabric Blue/Grey & Black/Grey. Supplied as a complete unit, assembly instructions included.
Features
- Rigid Snap-Lock framing system
- 316 grade stainless steel fasteners
- Rated to 45knots, be aware of winds speeds
Suitable for
| SUITABLE FOR | |||

|

|

|

|
| Open Boats | Runabouts | Half Cabins | Ski Boats |
Sizing Guide
| CANOPY WIDTH | MOUNTING WIDTH | ORDER CODE |
| 1.3m | 1.5m – 1.7m | MA 099-1 |
| 1.5m | 1.7m – 1.9m | MA 099-2 |
| 1.7m | 1.9m – 2.1m | MA 099-3 |

|
||
Canvas Details


|
|
| Weight | 350 g/m2 (10.4 oz/yd2) |
| Material | 100% High Tech Polyester |
| Water Column | ≥ 150 mbar (1500 mm) |
| Light & Weather Fastness | Note 7-8 |
| Tensile Strength | ≈ 2600 N¹ | 1600 N² |
| Elongation | ≈ 40 %¹ | 30 %² |
| Colour Fastness to rubbing | Note 4-5³ | Note 44 |
| Chlorine Resistant | Note 4-5 |
| Water Repellency | Note 100 |
| Oil Repellency | Note 4 |
| Coating | Polyurethan [PU] |
| UV Protection Factor | UPF 50+ (measured value > UPF 80) |
How to Install
Download Whitewater Bimini Instructions pdf
Download Clamp-on Rocket Launcher Instructions pdf
