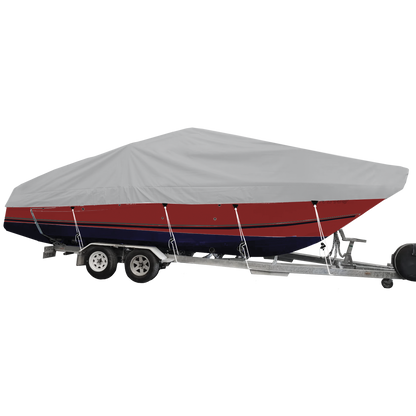

Trailerable high quality cover.
Design to fit Bowrider type boats, suitable for boats with bow rails up to 150mm height and windscreen up to 600mm height.
Description
An excellent quality boat cover which will give your boat protection through the seasons.
- Designed with a wide cut and tailored to fit across windscreen.
- Fits boats with bow rails up to 150mm height, and windscreens up to 600mm height.
- Trailerable and suitable for highway towing.
Sizing
| BOAT LENGTH |
WIDTH |
ORDER CODE |
|---|---|---|
| BOATS WITH OUTBOARD MOTORS | ||
| 6.7m – 7.2m (21′ 9” – 22′ 6”) | 2.7m (8′ 8”) | MA 200A-15 |
| 7.2m – 7.8m (22′ 7” – 25′ 6”) | 2.7m (8′ 8”) | MA 200A-16 |
| 7.8m – 8.4m (25′ 7” – 27′ 6”) | 2.9m (9′ 6”) | MA 200A-17 |
| 8.4m – 9.0m (27′ 7” – 29′ 6”) | 3.1m (10′ 2”) | MA 200A-18 |
| 9.0m – 9.6m (29′ 7” – 31′ 6”) | 3.1m (10′ 2”) | MA 200A-19 |
| 9.6m – 10.2m (31′ 7” – 33′ 6”) | 3.1m (10′ 2”) | MA 200A-20 |
| BOATS WITH INBOARD MOTORS | ||
| 6.7m – 7.2m (21′ 9” – 22′ 6”) | 2.7m (8′ 8”) | MA 200B-15 |
| 7.2m – 7.8m (22′ 7” – 25′ 6”) | 2.7m (8′ 8”) | MA 200B-16 |
| 7.8m – 8.4m (25′ 7” – 27′ 6”) | 2.9m (9′ 6”) | MA 200B-17 |
| 8.4m – 9.0m (27′ 7” – 29′ 6”) | 3.1m (10′ 2”) | MA 200B-18 |
| 9.0m – 9.6m (29′ 7” – 31′ 6”) | 3.1m (10′ 2”) | MA 200B-19 |
| 9.6m – 10.2m (31′ 7” – 33′ 6”) | 3.1m (10′ 2”) | MA 200B-20 |
How to Measure
Choose the style that best suits your boat then follow the measuring instructions to find the correct size.
STEP 1: Measure Boat Length
Measure in a straight line the centerline distance of your boat from Bow to Stern.
STEP 2: Measure Beam Width
Measure in a straight line the distance across the beam (widest point of your boat)
NOTE: It is recommended that both measurement instructions are used to help you choose
the correct cover size.
OVERALL FABRIC MEASUREMENTS
STEP 1: Measure Fabric Width
Using the ‘overall cover fabric width’ measurement of your chosen cover, measure across the widest point of your boat, over the top of any boat fittings
e.g. cabin, windscreens etc.to the point on the hull where the cover’s hem will finish.
STEP 2: Measure Fabric Length
Using the ‘overall cover fabric length’ measurement of your chosen cover, measure along the length of your boat, over the top of any boat fittings e.g. cabin, windscreens etc. to the point on the hull where the cover’s hem will finish
Overall Cover Dimensions
FABRIC WIDTH (W)
FABRIC LENGTH (L)

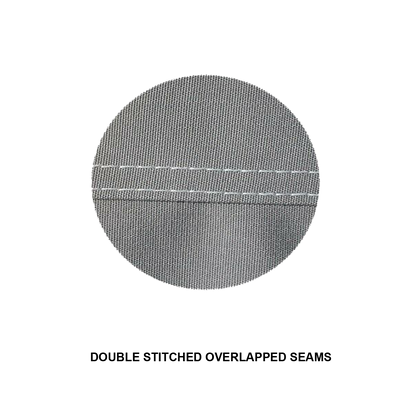

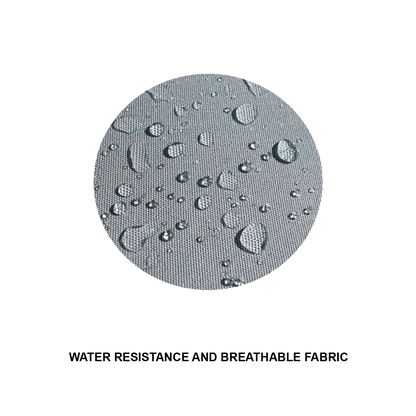

Fabric Details
| Weight | 280 g/m2 |
| Material | 100% High Tech Polyester |
| Water Column | ≥ 150 mbar (1500 mm) |
| Light & Weather Fastness | Note 6-7 |
| Tensile Strength | ≈ 2200 N¹ | 1400 N² |
| Elongation | ≈ 40 %¹ | 30 %² |
| Colour Fastness to rubbing | Note 4-5³ | Note 44 |
| Chlorine Resistant | Note 4-5 |
| Water Repellency | Note 100 |
| Oil Repellency | Note 4 |
| Coating | Polyurethan [PU] |
| UV Protection Factor | UPF 50+ (measured value > UPF 80) |
